Restart and resolution change
Fluidsim provides 2 command-line tools to restart a simulation (fluidsim-restart)
and create a new file with a modified resolution (fluidsim-modif-resolution).
Let’s present these very useful tools!
First, one can get help by invoking these tools with the -h option:
!fluidsim-restart -h
usage: fluidsim-restart [-h] [-oc] [-oi] [--modify-params MODIFY_PARAMS]
[--new-dir-results] [--t_approx T_APPROX]
[--add-to-t_end ADD_TO_T_END]
[--add-to-it_end ADD_TO_IT_END] [--t_end T_END]
[--it_end IT_END] [--merge-missing-params]
[--max-elapsed MAX_ELAPSED]
path
Restart a fluidsim simulation
positional arguments:
path Path of the directory or file from which to restart
options:
-h, --help show this help message and exit
-oc, --only-check Only check what should be done
-oi, --only-init Only run initialization phase
--modify-params MODIFY_PARAMS
Code modifying the `params` object.
--new-dir-results Create a new directory for the new simulation
--t_approx T_APPROX Approximate time to choose the file from which to
restart
--add-to-t_end ADD_TO_T_END
Time added to params.time_stepping.t_end
--add-to-it_end ADD_TO_IT_END
Number of steps added to params.time_stepping.it_end
--t_end T_END params.time_stepping.t_end
--it_end IT_END params.time_stepping.it_end
--merge-missing-params
Can be used to load old simulations carried out with
an old fluidsim version.
--max-elapsed MAX_ELAPSED
Maximum elapsed time.
!fluidsim-modif-resolution -h
usage: fluidsim-modif-resolution [-h] [--t_approx T_APPROX]
path coef_modif_resol
Create a new state file with a different resolution
positional arguments:
path Input: path towards a directory or a file
coef_modif_resol Input: coefficient of resolution change
options:
-h, --help show this help message and exit
--t_approx T_APPROX Approximate time to choose the file from which to
restart
Show code cell content
from pathlib import Path
import shutil
path_fls = "/tmp/sim_data"
path_base = Path(path_fls) / "doc_aniso"
shutil.rmtree(path_base, ignore_errors=True)
Show code cell content
import os
os.environ["FLUIDSIM_PATH"] = path_fls
os.environ["TRANSONIC_BACKEND"] = "python"
Then, let’s use these tools. First we need a simulation directory.
from fluidsim.util.scripts.turb_trandom_anisotropic import main
params, sim = main(
args=(
'--sub-directory "doc_aniso" -nz 12 --ratio-nh-nz 2 --t_end 1 '
'--modify-params "params.output.periods_print.print_stdout = 0.25; '
'params.output.periods_save.spect_energy_budg = 0"'
)
)
Namespace(only_print_params_as_code=False, only_print_params=False, only_plot_forcing=False, nz=12, ratio_nh_nz=2, t_end=1.0, N=10.0, nu=None, nu4=None, Rb=None, Rb4=None, coef_nu4=1.0, forced_field='polo', init_velo_max=0.01, nh_forcing=3, ratio_kfmin_kf=0.5, ratio_kfmax_kf=2.0, F=0.3, delta_F=0.1, spatiotemporal_spectra=False, projection=None, disable_no_vz_kz0=False, disable_NO_SHEAR_MODES=False, max_elapsed='23:50:00', coef_dealiasing=0.8, periods_save_phys_fields=1.0, sub_directory='doc_aniso', modify_params='params.output.periods_print.print_stdout = 0.25; params.output.periods_save.spect_energy_budg = 0')
Input horizontal Froude number: 0.1
eta * k_max = 1.902e-01
Resolution too coarse, we add order-4 hyper viscosity nu_4=4.524e-05.
angle = 17.46°
params.forcing.nkmin_forcing = 2.5
params.forcing.nkmax_forcing = 6
*************************************
Program fluidsim
To plot the forcing modes, you can use:
sim.forcing.forcing_maker.plot_forcing_region()
sim: <class 'fluidsim.solvers.ns3d.strat.solver.Simul'>
sim.output: <class 'fluidsim.solvers.ns3d.strat.output.Output'>
sim.oper: <class 'fluidsim.operators.operators3d.OperatorsPseudoSpectral3D'>
sim.state: <class 'fluidsim.solvers.ns3d.strat.state.StateNS3DStrat'>
sim.time_stepping: <class 'fluidsim.solvers.ns3d.time_stepping.TimeSteppingPseudoSpectralNS3D'>
sim.init_fields: <class 'fluidsim.solvers.ns3d.init_fields.InitFieldsNS3D'>
sim.forcing: <class 'fluidsim.solvers.ns3d.forcing.ForcingNS3D'>
solver ns3d.strat, RK4 and sequential,
type fft: fluidfft.fft3d.with_pyfftw
nx = 24 ; ny = 24 ; nz = 12
Lx = 3 ; Ly = 3 ; Lz = 1.5
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
init_fields.type: noise
Initialization outputs:
sim.output.cross_corr: <class 'fluidsim.base.output.cross_corr3d.CrossCorrelations'>
sim.output.phys_fields: <class 'fluidsim.base.output.phys_fields3d.PhysFieldsBase3D'>
sim.output.spatial_means: <class 'fluidsim.solvers.ns3d.strat.output.spatial_means.SpatialMeansNS3DStrat'>
sim.output.spatiotemporal_spectra:<class 'fluidsim.solvers.ns3d.output.spatiotemporal_spectra.SpatioTemporalSpectraNS3D'>
sim.output.spectra: <class 'fluidsim.solvers.ns3d.strat.output.spectra.SpectraNS3DStrat'>
sim.output.spect_energy_budg: <class 'fluidsim.solvers.ns3d.strat.output.spect_energy_budget.SpectralEnergyBudgetNS3DStrat'>
sim.output.temporal_spectra: <class 'fluidsim.base.output.temporal_spectra.TemporalSpectra3D'>
Memory usage at the end of init. (equiv. seq.): 216.6875 Mo
Size of state_spect (equiv. seq.): 0.239616 Mo
*************************************
Beginning of the computation
save state_phys in file state_phys_t000.000.nc
compute until t = 1
it = 0 ; t = 0 ; deltat = 0.03927
energy = 8.258e-06 ; Delta energy = +0.000e+00
MEMORY_USAGE: 217.2421875 Mo
it = 7 ; t = 0.274889 ; deltat = 0.03927
energy = 7.868e-02 ; Delta energy = +7.867e-02
estimated remaining duration = 0:00:03
MEMORY_USAGE: 218.78125 Mo
it = 13 ; t = 0.510509 ; deltat = 0.03927
energy = 9.740e-02 ; Delta energy = +1.872e-02
estimated remaining duration = 0:00:03
MEMORY_USAGE: 218.78125 Mo
it = 20 ; t = 0.785398 ; deltat = 0.03927
energy = 1.037e-01 ; Delta energy = +6.248e-03
estimated remaining duration = 0:00:01
MEMORY_USAGE: 218.78125 Mo
it = 26 ; t = 1.02102 ; deltat = 0.03927
energy = 1.070e-01 ; Delta energy = +3.327e-03
MEMORY_USAGE: 219.13671875 Mo
save state_phys in file state_phys_t001.021.nc
Computation completed in 5.23674 s
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
# To visualize the output with Paraview, create a file states_phys.xmf with:
fluidsim-create-xml-description /tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
# To visualize with fluidsim:
cd /tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16; fluidsim-ipy-load
# in IPython:
sim.output.phys_fields.set_equation_crosssection('x=1.5')
sim.output.phys_fields.animate('b')
We then define a variable with the path of the directory containing the results of the simulation.
sim.output.path_run
'/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16'
from pprint import pprint
def ls_path_run(glob="*"):
pprint(sorted(p.name for p in Path(sim.output.path_run).glob(glob)))
ls_path_run()
['_forcing_state.txt',
'cross_corr1d.h5',
'cross_corr3d.h5',
'cross_corr_kzkh.h5',
'info_solver.xml',
'params_simul.xml',
'spatial_means.txt',
'spectra1d.h5',
'spectra3d.h5',
'spectra_kzkh.h5',
'state_phys_t000.000.nc',
'state_phys_t001.021.nc',
'stdout.txt']

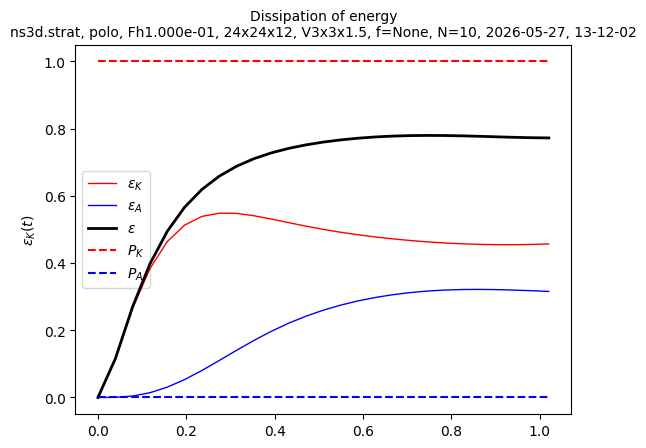

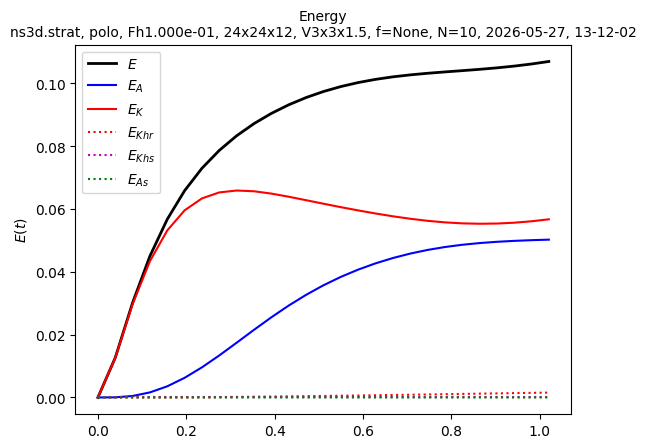

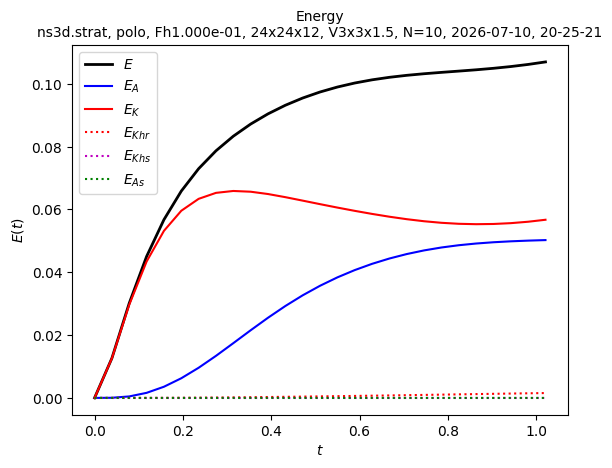

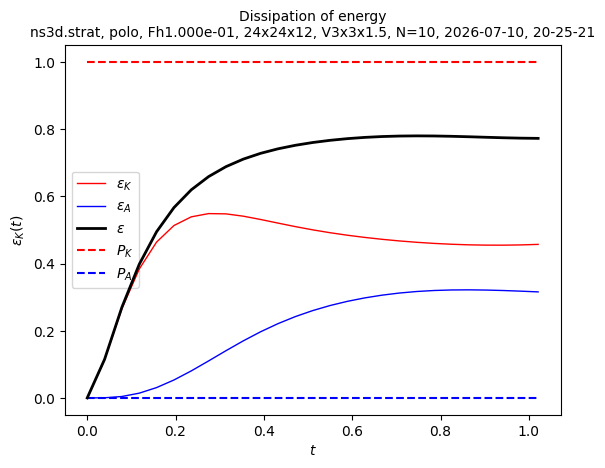

sim.output.spatial_means.plot()
Ah, we see that t_end = 1 was not enough to obtain a statistically steady state. We need to run the simulation longer. Let’s restart it to run until t_end = 2:
!fluidsim-restart {sim.output.path_run} --t_end 2.0
Namespace(path='/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16', only_check=False, only_init=False, modify_params=None, new_dir_results=False, t_approx=None, add_to_t_end=None, add_to_it_end=None, t_end=2.0, it_end=None, merge_missing_params=False, max_elapsed=None)
/home/docs/checkouts/readthedocs.org/user_builds/fluidsim/envs/latest/lib/python3.11/site-packages/fluidsim/operators/operators2d.py:35: UserWarning: operators2d.py has to be pythranized to be efficient! Install pythran and recompile.
warn(
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/state_phys_t001.021.nc
*************************************
Program fluidsim
Load state from file:
[...]h1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/state_phys_t001.021.nc
To plot the forcing modes, you can use:
sim.forcing.forcing_maker.plot_forcing_region()
sim: <class 'fluidsim.solvers.ns3d.strat.solver.Simul'>
sim.output: <class 'fluidsim.solvers.ns3d.strat.output.Output'>
sim.oper: <class 'fluidsim.operators.operators3d.OperatorsPseudoSpectral3D'>
sim.state: <class 'fluidsim.solvers.ns3d.strat.state.StateNS3DStrat'>
sim.time_stepping: <class 'fluidsim.solvers.ns3d.time_stepping.TimeSteppingPseudoSpectralNS3D'>
sim.init_fields: <class 'fluidsim.solvers.ns3d.init_fields.InitFieldsNS3D'>
sim.forcing: <class 'fluidsim.solvers.ns3d.forcing.ForcingNS3D'>
solver ns3d.strat, RK4 and sequential,
type fft: fluidfft.fft3d.with_pyfftw
nx = 24 ; ny = 24 ; nz = 12
Lx = 3 ; Ly = 3 ; Lz = 1.5
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
init_fields.type: from_file
Initialization outputs:
sim.output.cross_corr: <class 'fluidsim.base.output.cross_corr3d.CrossCorrelations'>
sim.output.phys_fields: <class 'fluidsim.base.output.phys_fields3d.PhysFieldsBase3D'>
sim.output.spatial_means: <class 'fluidsim.solvers.ns3d.strat.output.spatial_means.SpatialMeansNS3DStrat'>
sim.output.spatiotemporal_spectra:<class 'fluidsim.solvers.ns3d.output.spatiotemporal_spectra.SpatioTemporalSpectraNS3D'>
sim.output.spectra: <class 'fluidsim.solvers.ns3d.strat.output.spectra.SpectraNS3DStrat'>
sim.output.spect_energy_budg: <class 'fluidsim.solvers.ns3d.strat.output.spect_energy_budget.SpectralEnergyBudgetNS3DStrat'>
sim.output.temporal_spectra: <class 'fluidsim.base.output.temporal_spectra.TemporalSpectra3D'>
Memory usage at the end of init. (equiv. seq.): 202.11328125 Mo
Size of state_spect (equiv. seq.): 0.239616 Mo
*************************************
Beginning of the computation
compute until t = 2
it = 26 ; t = 1.02102 ; deltat = 0.03927
energy = 1.070e-01 ; Delta energy = +0.000e+00
MEMORY_USAGE: 202.11328125 Mo
it = 32 ; t = 1.25664 ; deltat = 0.03927
energy = 1.141e-01 ; Delta energy = +7.157e-03
estimated remaining duration = 0:00:04
MEMORY_USAGE: 203.66015625 Mo
it = 39 ; t = 1.53153 ; deltat = 0.03927
energy = 1.224e-01 ; Delta energy = +8.255e-03
estimated remaining duration = 0:00:02
MEMORY_USAGE: 203.91796875 Mo
it = 45 ; t = 1.76715 ; deltat = 0.03927
energy = 1.250e-01 ; Delta energy = +2.609e-03
estimated remaining duration = 0:00:01
MEMORY_USAGE: 203.91796875 Mo
it = 51 ; t = 2.00277 ; deltat = 0.03927
energy = 1.240e-01 ; Delta energy = -9.659e-04
MEMORY_USAGE: 203.91796875 Mo
save state_phys in file state_phys_t002.003.nc
Computation completed in 4.98016 s
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
# To visualize with IPython:
cd /tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16; fluidsim-ipy-load
ls_path_run()
['_forcing_state.txt',
'cross_corr1d.h5',
'cross_corr3d.h5',
'cross_corr_kzkh.h5',
'info_solver.xml',
'params_simul.xml',
'spatial_means.txt',
'spectra1d.h5',
'spectra3d.h5',
'spectra_kzkh.h5',
'state_phys_t000.000.nc',
'state_phys_t001.021.nc',
'state_phys_t002.003.nc',
'stdout.txt']

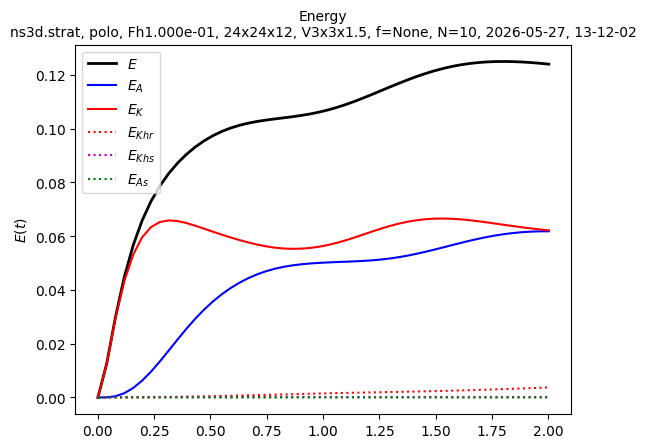

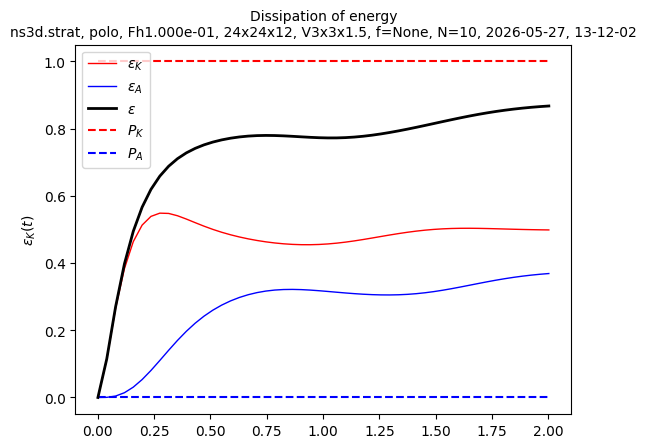

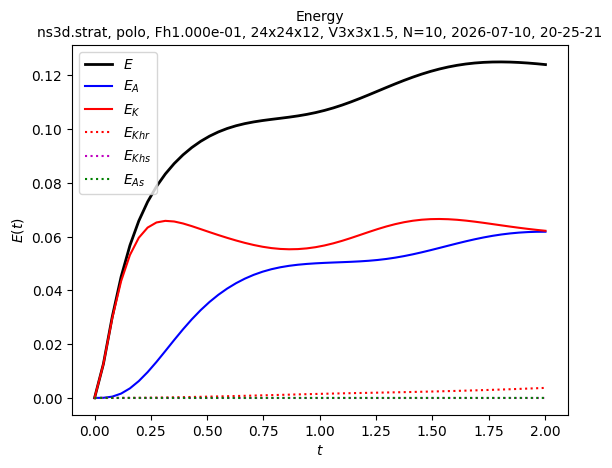

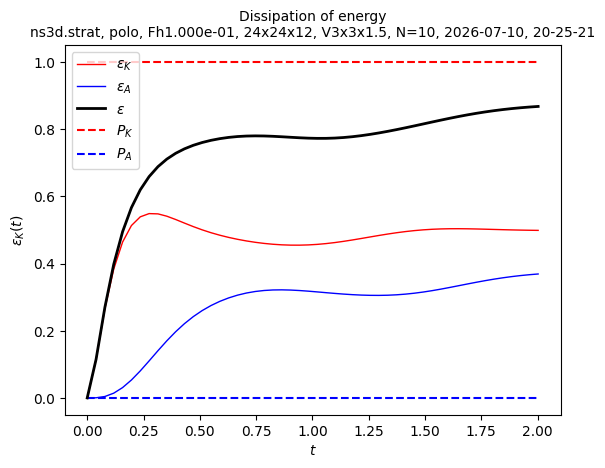

sim.output.spatial_means.plot()
Finally, we are not far from a statistically steady state. We can relaunch the simulation to save results about this state. Here we show how to restart a simulation with the spatiotemporal spectra output activated:
!fluidsim-restart {sim.output.path_run} --t_end 3.0 --modify-params "params.output.periods_save.spatiotemporal_spectra = 2 * pi / (4 * params.N)"
Namespace(path='/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16', only_check=False, only_init=False, modify_params='params.output.periods_save.spatiotemporal_spectra = 2 * pi / (4 * params.N)', new_dir_results=False, t_approx=None, add_to_t_end=None, add_to_it_end=None, t_end=3.0, it_end=None, merge_missing_params=False, max_elapsed=None)
/home/docs/checkouts/readthedocs.org/user_builds/fluidsim/envs/latest/lib/python3.11/site-packages/fluidsim/operators/operators2d.py:35: UserWarning: operators2d.py has to be pythranized to be efficient! Install pythran and recompile.
warn(
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/state_phys_t002.003.nc
*************************************
Program fluidsim
Load state from file:
[...]h1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/state_phys_t002.003.nc
To plot the forcing modes, you can use:
sim.forcing.forcing_maker.plot_forcing_region()
sim: <class 'fluidsim.solvers.ns3d.strat.solver.Simul'>
sim.output: <class 'fluidsim.solvers.ns3d.strat.output.Output'>
sim.oper: <class 'fluidsim.operators.operators3d.OperatorsPseudoSpectral3D'>
sim.state: <class 'fluidsim.solvers.ns3d.strat.state.StateNS3DStrat'>
sim.time_stepping: <class 'fluidsim.solvers.ns3d.time_stepping.TimeSteppingPseudoSpectralNS3D'>
sim.init_fields: <class 'fluidsim.solvers.ns3d.init_fields.InitFieldsNS3D'>
sim.forcing: <class 'fluidsim.solvers.ns3d.forcing.ForcingNS3D'>
solver ns3d.strat, RK4 and sequential,
type fft: fluidfft.fft3d.with_pyfftw
nx = 24 ; ny = 24 ; nz = 12
Lx = 3 ; Ly = 3 ; Lz = 1.5
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
init_fields.type: from_file
Initialization outputs:
sim.output.cross_corr: <class 'fluidsim.base.output.cross_corr3d.CrossCorrelations'>
sim.output.phys_fields: <class 'fluidsim.base.output.phys_fields3d.PhysFieldsBase3D'>
sim.output.spatial_means: <class 'fluidsim.solvers.ns3d.strat.output.spatial_means.SpatialMeansNS3DStrat'>
sim.output.spatiotemporal_spectra:<class 'fluidsim.solvers.ns3d.output.spatiotemporal_spectra.SpatioTemporalSpectraNS3D'>
sim.output.spectra: <class 'fluidsim.solvers.ns3d.strat.output.spectra.SpectraNS3DStrat'>
sim.output.spect_energy_budg: <class 'fluidsim.solvers.ns3d.strat.output.spect_energy_budget.SpectralEnergyBudgetNS3DStrat'>
sim.output.temporal_spectra: <class 'fluidsim.base.output.temporal_spectra.TemporalSpectra3D'>
Memory usage at the end of init. (equiv. seq.): 202.52734375 Mo
Size of state_spect (equiv. seq.): 0.239616 Mo
*************************************
Beginning of the computation
compute until t = 3
it = 51 ; t = 2.00277 ; deltat = 0.03927
energy = 1.240e-01 ; Delta energy = +0.000e+00
MEMORY_USAGE: 202.52734375 Mo
it = 58 ; t = 2.27765 ; deltat = 0.03927
energy = 1.213e-01 ; Delta energy = -2.778e-03
estimated remaining duration = 0:00:03
MEMORY_USAGE: 204.33203125 Mo
it = 64 ; t = 2.51327 ; deltat = 0.03927
energy = 1.192e-01 ; Delta energy = -2.034e-03
estimated remaining duration = 0:00:03
MEMORY_USAGE: 204.33203125 Mo
it = 71 ; t = 2.78816 ; deltat = 0.03927
energy = 1.169e-01 ; Delta energy = -2.298e-03
estimated remaining duration = 0:00:01
MEMORY_USAGE: 204.70703125 Mo
it = 77 ; t = 3.02378 ; deltat = 0.03927
energy = 1.132e-01 ; Delta energy = -3.748e-03
MEMORY_USAGE: 204.70703125 Mo
save state_phys in file state_phys_t003.024.nc
Computation completed in 5.20802 s
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16
# To visualize with IPython:
cd /tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16; fluidsim-ipy-load
ls_path_run()
['_forcing_state.txt',
'cross_corr1d.h5',
'cross_corr3d.h5',
'cross_corr_kzkh.h5',
'info_solver.xml',
'params_simul.xml',
'spatial_means.txt',
'spatiotemporal',
'spectra1d.h5',
'spectra3d.h5',
'spectra_kzkh.h5',
'state_phys_t000.000.nc',
'state_phys_t001.021.nc',
'state_phys_t002.003.nc',
'state_phys_t003.024.nc',
'stdout.txt']
spatiotemporal is a directory containing the data that can be used to compute spatiotemporal spectra:
ls_path_run("spatiotemporal/*")
['rank00000_tmin002.003.h5']

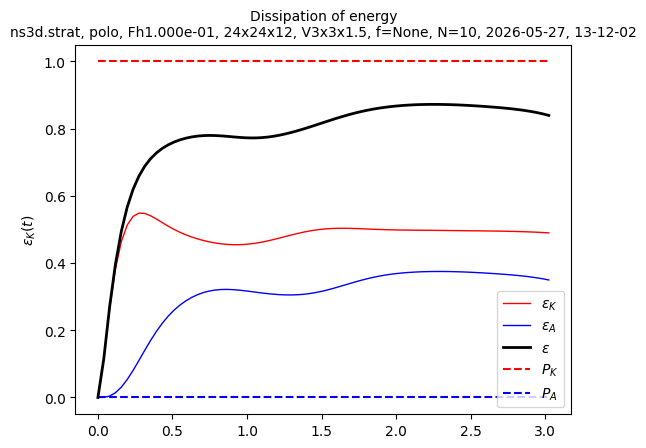

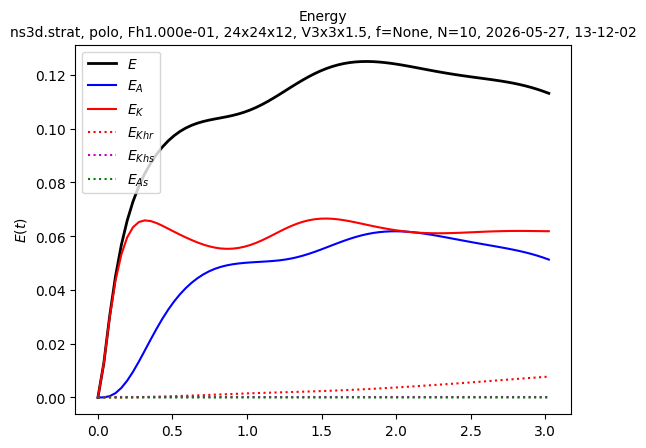

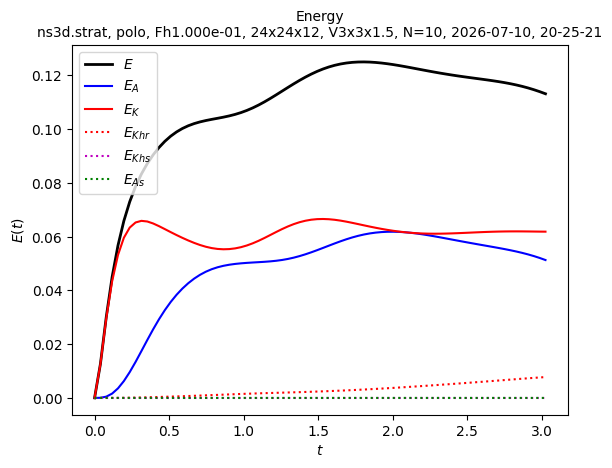

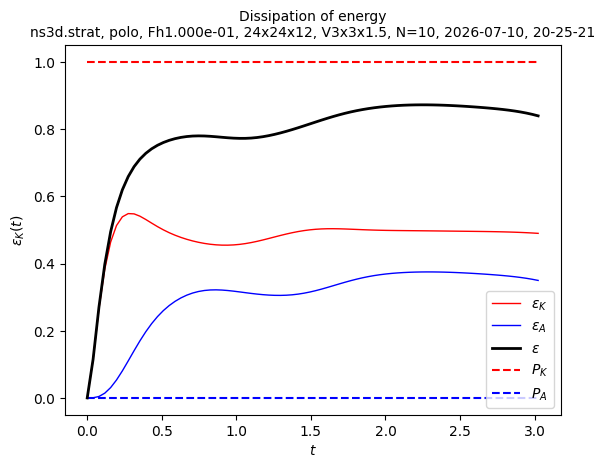

sim.output.spatial_means.plot()
We want to start a larger simulation from the last state of this small simulation. We first need to create a larger file:
!fluidsim-modif-resolution {sim.output.path_run} 5/4
Namespace(path='/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16', coef_modif_resol='5/4', t_approx=None)
Changing resolution of the state contained in
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/state_phys_t003.024.nc
/home/docs/checkouts/readthedocs.org/user_builds/fluidsim/envs/latest/lib/python3.11/site-packages/fluidsim/operators/operators2d.py:35: UserWarning: operators2d.py has to be pythranized to be efficient! Install pythran and recompile.
warn(
Memory usage after init operator "input": 0.167 Go
Memory usage after init operator "output": 0.167 Go
Memory usage after init fields: 0.167 Go
size field2: 0.000 Go
Memory usage after init field2: 0.167 Go
size field2_spect: 0.000 Go
Memory usage after init field2_spect: 0.167 Go
Saving file state_phys_t003.024.nc...
get_var("vx")
- reading field from disk... done in 0:00:00.004682
- forward fft smaller field... done in 0:00:00.000089
- filling field2_fft... done in 0:00:00.001492
- backward fft field2... done in 0:00:00.000178
get_var("vy")
- reading field from disk... done in 0:00:00.003802
- forward fft smaller field... done in 0:00:00.000076
- filling field2_fft... done in 0:00:00.001460
- backward fft field2... done in 0:00:00.000100
get_var("vz")
- reading field from disk... done in 0:00:00.003782
- forward fft smaller field... done in 0:00:00.000074
- filling field2_fft... done in 0:00:00.001457
- backward fft field2... done in 0:00:00.000116
get_var("b")
- reading field from disk... done in 0:00:00.003744
- forward fft smaller field... done in 0:00:00.000072
- filling field2_fft... done in 0:00:00.001497
- backward fft field2... done in 0:00:00.000097
File state_phys_t003.024.nc saved in:
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15
total duration: 0:00:00.842559
We can now launch the last simulation from the file just created.
path_new_state = next(Path(sim.output.path_run).glob("State_phys*"))
str(path_new_state)
'/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15'
!fluidsim-restart {path_new_state} --t_end 3.1 --modify-params "params.NEW_DIR_RESULTS = True; params.nu_2 /= 2; params.output.periods_print.print_stdout = 0.05; params.output.periods_save.spatial_means = 0.01;"
Namespace(path='/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15', only_check=False, only_init=False, modify_params='params.NEW_DIR_RESULTS = True; params.nu_2 /= 2; params.output.periods_print.print_stdout = 0.05; params.output.periods_save.spatial_means = 0.01;', new_dir_results=False, t_approx=None, add_to_t_end=None, add_to_it_end=None, t_end=3.1, it_end=None, merge_missing_params=False, max_elapsed=None)
load params from file
[...]olo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15/state_phys_t003.024.nc
/home/docs/checkouts/readthedocs.org/user_builds/fluidsim/envs/latest/lib/python3.11/site-packages/fluidsim/operators/operators2d.py:35: UserWarning: operators2d.py has to be pythranized to be efficient! Install pythran and recompile.
warn(
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15/state_phys_t003.024.nc
*************************************
Program fluidsim
Load state from file:
[...]V3x3x1.5_N10_2024-04-04_21-35-16/State_phys_30x30x15/state_phys_t003.024.nc
To plot the forcing modes, you can use:
sim.forcing.forcing_maker.plot_forcing_region()
sim: <class 'fluidsim.solvers.ns3d.strat.solver.Simul'>
sim.output: <class 'fluidsim.solvers.ns3d.strat.output.Output'>
sim.oper: <class 'fluidsim.operators.operators3d.OperatorsPseudoSpectral3D'>
sim.state: <class 'fluidsim.solvers.ns3d.strat.state.StateNS3DStrat'>
sim.time_stepping: <class 'fluidsim.solvers.ns3d.time_stepping.TimeSteppingPseudoSpectralNS3D'>
sim.init_fields: <class 'fluidsim.solvers.ns3d.init_fields.InitFieldsNS3D'>
sim.forcing: <class 'fluidsim.solvers.ns3d.forcing.ForcingNS3D'>
solver ns3d.strat, RK4 and sequential,
type fft: fluidfft.fft3d.with_pyfftw
nx = 30 ; ny = 30 ; nz = 15
Lx = 3 ; Ly = 3 ; Lz = 1.5
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_30x30x15_V3x3x1.5_N10_2024-04-04_21-35-43
init_fields.type: from_file
Initialization outputs:
sim.output.cross_corr: <class 'fluidsim.base.output.cross_corr3d.CrossCorrelations'>
sim.output.phys_fields: <class 'fluidsim.base.output.phys_fields3d.PhysFieldsBase3D'>
sim.output.spatial_means: <class 'fluidsim.solvers.ns3d.strat.output.spatial_means.SpatialMeansNS3DStrat'>
sim.output.spatiotemporal_spectra:<class 'fluidsim.solvers.ns3d.output.spatiotemporal_spectra.SpatioTemporalSpectraNS3D'>
sim.output.spectra: <class 'fluidsim.solvers.ns3d.strat.output.spectra.SpectraNS3DStrat'>
sim.output.spect_energy_budg: <class 'fluidsim.solvers.ns3d.strat.output.spect_energy_budget.SpectralEnergyBudgetNS3DStrat'>
sim.output.temporal_spectra: <class 'fluidsim.base.output.temporal_spectra.TemporalSpectra3D'>
Memory usage at the end of init. (equiv. seq.): 204.28125 Mo
Size of state_spect (equiv. seq.): 0.4608 Mo
*************************************
Beginning of the computation
save state_phys in file state_phys_t003.024.nc
compute until t = 3.1
it = 77 ; t = 3.02378 ; deltat = 0.03927
energy = 1.132e-01 ; Delta energy = +0.000e+00
MEMORY_USAGE: 204.28125 Mo
it = 78 ; t = 3.06305 ; deltat = 0.03927
energy = 1.158e-01 ; Delta energy = +2.661e-03
estimated remaining duration = 0:00:00
MEMORY_USAGE: 207.88671875 Mo
it = 79 ; t = 3.10232 ; deltat = 0.03927
energy = 1.116e-01 ; Delta energy = -4.216e-03
MEMORY_USAGE: 208.14453125 Mo
save state_phys in file state_phys_t003.102.nc
Computation completed in 0.719218 s
path_run =
/tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_30x30x15_V3x3x1.5_N10_2024-04-04_21-35-43
# To visualize with IPython:
cd /tmp/sim_data/doc_aniso/ns3d.strat_polo_Fh1.000e-01_30x30x15_V3x3x1.5_N10_2024-04-04_21-35-43; fluidsim-ipy-load
[p.name for p in path_base.glob("*")]
['ns3d.strat_polo_Fh1.000e-01_24x24x12_V3x3x1.5_N10_2024-04-04_21-35-16',
'ns3d.strat_polo_Fh1.000e-01_30x30x15_V3x3x1.5_N10_2024-04-04_21-35-43']
